Heavy-lift cargo - one of our lightest exercises
Transfer of plant components at bayernhafen Passau
- Home
- Services
- Cargo Transfer & Logistics
bayernhafen
cargo transfer & logistics
Whether bulk cargo, break bulk, heavy-lift or liquid cargo, containers, semi-trailers or swap bodies - the effective transfer of goods from one mode of transport to another places high demands on technology and organisational talent. For each shipment we ensure precision, efficiency, safety and punctuality.
We use state-of-the-art technology, such as high-performance cranes and innovative handling equipment, and provide special handling facilities at our locations for oversized and heavy-lift goods. A wide range of silos, oil tanks, refrigerated stores and modern warehouses are available at our sites to tailor to the storage requirements for all manner of goods.
In Aschaffenburg, we move goods of all kinds: In our handling facilities, we transfer mostly raw materials and bulk goods such as mineral oils, construction materials, cellulose, coal, steel and chemical intermediates. In dispatch, we concentrate on high-value industrial products, consumer/industrial timber, and recycling materials such as steel/scrap metals, paper and plastic. As a high-performance logistics company, this enables us to offer industrial and trading companies in the Bavarian Lower Main region access to global transport chains.
State-of-the-art technology is at your disposal for your cargo transfer operations. Our handling facilities ensure efficient, on-time handling of bulk goods, containers, groupage freight and heavy-lift goods. Pumping facilities and storage tanks ensure the supply of mineral oil and other liquid goods to the region. If you need to transfer exceptionally heavy and bulky goods, we handle this assignment at our dedicated cargo-transfer facilities.
Whether transport, storage, picking, processing, procuring, recycling or distributing, we work closely with the companies operating from our port to meet the demands you expect from high-performance logistics.
Would you like to find out more about our services or register your cargo transfer?
We would be happy to provide you with an individual offer.
We look forward to hearing from you!
Handling facilities
Our trimodal infra-/superstructure delivers a wide range of efficient cargo-handling solutions to meet the specific requirements of a diverse mix of goods, from bulk goods to break bulk, from heavy lift to containers.
- Trimodal handling area for bulk goods, general cargo
- Loading road with rail connection
- Rail-mounted cranes up to 50 tonnes load-bearing capacity: 3
- Mobile material-handling excavators up to 14 tonnes load-bearing capacity: 2
- Heavy-lift transfer sites for loads up to 300 tonnes: 2
- Heavy-lift transfer track for loads up to 300 tonnes: 1
- Dedicated mineral oil pumping facilities: 4
- Dedicated loading point for Calcium carbonate: 1
- Trimodal handling facility for combined transport: 1
- Full-container reach stacker: 1
Heavy-lift handling
bayernhafen Aschaffenburg provides excellent conditions for handling bulky, overlength and ultra-heavy-lift cargo.
At two handling facilities on quay 4 and quay 6, truck-mounted cranes cab be deployed to handle heavy-lift loads up to 300 tonnes. Our heavy-lift transfer track in Stockstadter Weg can also handle loads of up to 300 tonnes.
Storage capacity
Our port provides suitably furnished/equipped capacity for the storage of bulk goods, groupage, liquids and heavy-lift cargo as well as combined transport unit loads. With numerous silos, oil tanks, container depots and technical facilities, we and the companies operating from our port are specialised in all manner of transportation storage.
Order picking and packaging, processing, recycling and finishing round off the range of comprehensive services and activities we offer.
- settlers' own Oil tank storage: 49,000 m³
- settlers' own Warehouse storage area: 84,000 m²
A wide range of goods are moved by road, rail and inland waterway at bayernhafen Bamberg. This includes traditional goods such as agricultural and forestry products, fertilisers, minerals and earths, as well as mineral oil, groupage freight and containers.
Would you like to find out more about our services or register your shipment for handling?
We would be happy to provide you with an individual offer.
We look forward to hearing from you!
Handling facilities
High-performance cargo-handling machines ensure seamless cargo transfer. Bulk cargo and ultra-heavy-lift groupage freight are transferred via the port’s dedicated cranes or through the use of truck-mounted cranes. The roll-on/roll-off facility enables all types of road freight to be loaded and unloaded directly from ship to shore or vice versa without requiring cargo handling equipment. In addition, a railcar loading ramp is available for transferring freight onto rail.
High-performance rail-mounted and mobile cranes ensure seamless cargo handling. We handle complex and heavy loads through the use of special equipment, such as flow chutes and pumping facilities.
- Rail-mounted cranes up to 10 tonnes load-bearing capacity: 2
- Mobile material-handling excavators up to 28.5 tonnes load-bearing capacity: 2
- Dedicated cereal flow chutes: 4
- Dedicated mineral oil pumping facilities: 1
- Dedicated loading conveyor belts: 4
- Heavy-lift transfer site: 1
- Combined transport handling facility: 1
Heavy-lift handling
Ultra-heavy-lift, overlength and bulky cargo can be handled via our heavy-lift transfer site. Heavy loads up to 125 tonnes can be handled using truck-mounted cranes on quay 3.
Storage capacity
Suitably equipped storage capacity is available at our port for the storage of bulk goods, groupage freight, liquids and heavy-lift cargo as well as combined transport unit loads. With numerous silos, refrigerated warehouses, oil tanks, container depots and technical equipment, we and the companies operating from our port are specialised in all manner of transportation storage.
- 472,000 m² depots and warehouse space
- Approx. 96,000 m³ silo storage
- Approx. 6,000 m³ oil tank storage
Order picking and packaging, processing, recycling and finishing round off the range of comprehensive services and activities we offer.
A wide range of goods are moved at bayernhafen Nürnberg. In addition to traditional goods such as cereals, fertilisers and animal feed, the port also handles iron ore, minerals and earths, heavy-lift cargo and foodstuffs for our customers.
If you have any further questions about our services or would like to register your shipment for handling, we will be more than happy to provide you with an individual offer.
We look forward to hearing from you!
Cargo transfer facilities
Our trimodal infrastructure and suprastructure delivers countless efficient handling solutions for the specific requirements of a wide range of commodities, such as bulk/break bulk cargo, heavy-lift goods or containers.
bayernhafen Nürnberg operates 8 full gantry level-luffing cranes delivering up to 40 tonnes of lifting capacity that can also be deployed in twin handling operations. Interchangeable grapples enable optimum adaptability to suit specific deployment situations. We provide the right equipment (various grapples and corresponding slings) to suit each commodity. In addition, the local handling companies provide conveyor belt systems and chutes.
- Rail-mounted full gantry level-luffing cranes delivering lifting capacity of up to 40 t: 8
- Heavy-lift transfer site with heavy-lift platform and hydraulic strand jack system for loads of up to 600 t: 1
- Roll-on/roll-off facilities for loads of up to 1,250 t: 1
- Trimodal handling facility for combined transport: 1
- Reach stacker on the water module: 1
Heavy-lift handling
bayernhafen Nürnberg provides excellent conditions for handling goods and cargo weighing up to 1,250 tonnes. Established in 1972, the roll-on/roll-off facilities were the first of their kind at a European inland port. They enable bulky, extra-long and exceptionally heavy cargo to be loaded onto barge. The range of heavy-lift and bulk cargo includes nuclear reactor components, tanks, crane components, melting furnaces, chemical industry equipment, heavy machinery, floating dredges and yachts as well as a broad range of large-scale transformers. At the beginning of 2012, a hydraulic strand jack system for loads of up to 600 tonnes was added to the facilities. The continual availability of these crane facilities results in savings not only in terms of time, but also in terms of costs.
Equipment or structural components, whose clearance profiles in their finished state would exceed those of rail or road systems, can be assembled on a reinforced and floodlit area immediately prior to loading. This saves expensive assembly in the destination country and avoids the strain that oversized cargo transport places on road networks. For the large-scale transformer and heavy machinery construction companies based in the Nuremberg metropolitan region, this is one of the decisive factors for their commitment to the region..
The company responsible for operating and marketing the heavy-lift transfer sites is Züst & Bachmeier Project GmbH.
Project organisation / supervision:
ZÜST & BACHMEIER PROJECT GMBH
Rothenburger Str. 241
90439 Nürnberg
Managing Director
Mr. Karl-Heinz Webersberger
Tel.: +49 911 655 8123
Fax: +49 911 655 819
Webersberger@zbproject.de
Project organisation / project team:
Senior Project Management
Mr. Stephan Seybold
Tel.: +49 911 655 8127
Fax: +49 911 655 819
Seybold@zbproject.de
Senior Project Management
Mr. Heiko Hornung
Tel.: +49 911 655 8124
Fax: +49 911 655 819
Hornung@zbproject.de
Senior Project Management
Mr. Andreas Wöhler
Tel.: +49 911 655 8131
Fax: +49 911 655 819
woehler@zbproject.de
Senior Project Management
Mr. Stefan Franzkowiak
Tel.: +49 911 655 8128
Fax: +49 911 655 819
Franzkowiak@zbproject.de
Watch the spectacular handling of a 530-tonne Siemens transformer in Züst & Bachmeier’s video
By loading this video you accept the privacy policy of YouTube.
Learn more
Storage capacity
bayernhafen Nürnberg provides suitably equipped storage capacity for the storage of bulk goods, groupage freight, liquids and heavy-lift cargo as well as the various combined transport unit loads. The companies based at our locations are specialists in all types of transport storage, providing a wide range of silos, oil tanks, container depots and technical infrastructure. Order picking and packaging, processing, recycling and finishing round off the range of comprehensive services and activities we offer.
- Details
- Oil tank storage: 57,000 m³
- Silo facilities: 92,000 m³
- Depots and warehouses: 840,000 m²
bayernhafen Roth handles a broad range of cargo and freight, from bulk goods such as coal, ores, scrap metal, cement, waste paper, timber, cereals, gravel, animal feed and fertilisers to high-value groupage freight. Seamless handling of bulk goods is assured by our full gantry level-luffing crane, which delivers a load capacity of up to 16 tonnes.
In addition, bayernhafen Roth provides excellent conditions for handling heavy-lift and ultra-heavy-lift cargo.
Would you like to find out more about our services or would you like to register your shipment for handling?
We would be more than happy to provide you with an individual offer.
We look forward to hearing from you!
Handling facilities
- Full gantry level-luffing crane delivering a handling capacity of up to 16 tonnes
- Heavy-lift handling via mobile crane with a handling capacity of up to 110 tonnes (twin handling operations up to 200 tonnes)
Heavy goods handling
bayernhafen Roth provides excellent conditions for handling bulky, overlength and ultra-heavy-lift cargo by mobile crane.
The maximum handling volume by mobile crane is 110 tonnes (twin operations: maximum of 200 tonnes).
Interim storage of cargo can be arranged upon request.
Our Port Master will be more than happy to provide you with more information.
A wide range of goods are moved at bayernhafen Regensburg. In addition to traditional cargo such as cereals, fertilisers and animal feed, the port also handles iron ore, minerals and earths, cement, our customers’ heavy-lift freight and foodstuffs.
Special storage depots and warehouses operated by the companies in our port can handle a wide range of goods and commodities, such as a heated warehouse for sensitive foodstuffs or recycling facilities for secondary raw materials. In our oil port, special storage tanks and mineral oil pumping facilities are available for handling liquid bulk cargo.
Our 7 dedicated cranes are ideally equipped for all types of cargo handling. Heavy-lift goods weighing up to 1,000 tonnes can be handled without incurring long waiting times for the delivery and assembly of third-party equipment.
If you have any further questions about our services or would like to register your shipment for handling, we will be more than happy to provide you with an individual offer.
We look forward to hearing from you!
Handling facilities
High-performance rail-mounted and mobile cranes ensure seamless cargo handling. Heavy-lift handling is possible both in the West and East Ports. The roll-on/roll-off facility enables all types of road freight to be loaded and unloaded directly from ship to shore or vice versa without requiring cargo handling equipment. bayernhafen Regensburg is also home to both the Rolling Road terminal and the combined transport terminal for handling containers. It also has mineral oil loading facilities.
Single/articulated jib luffing cranes are located at the West Port north quay for handling and transporting large-scale loads over large distances of up to 3 ships’ widths.
These cranes can be used for transferring groupage freight and bulk cargo and can also move under load on the tracks.
Technical information:
- Rail-mounted fully gantry port cranes
- Power feed 11 KV
- Lifting capacity: 45 tonnes up to jib length 17 m or 31 m 80 tonnes in twin operation
- Accessories: spreader equipment with a lifting capacity of 35 tonnes
The West Port north quay has a rail link with two quayside rail tracks at its disposal. It can be accessed by road from the A3 federal motorway, the B8, B15, B16 or the Osttangente bypass via Linzer Strasse or Wiener Strasse / Auweg and Budapester Strasse.

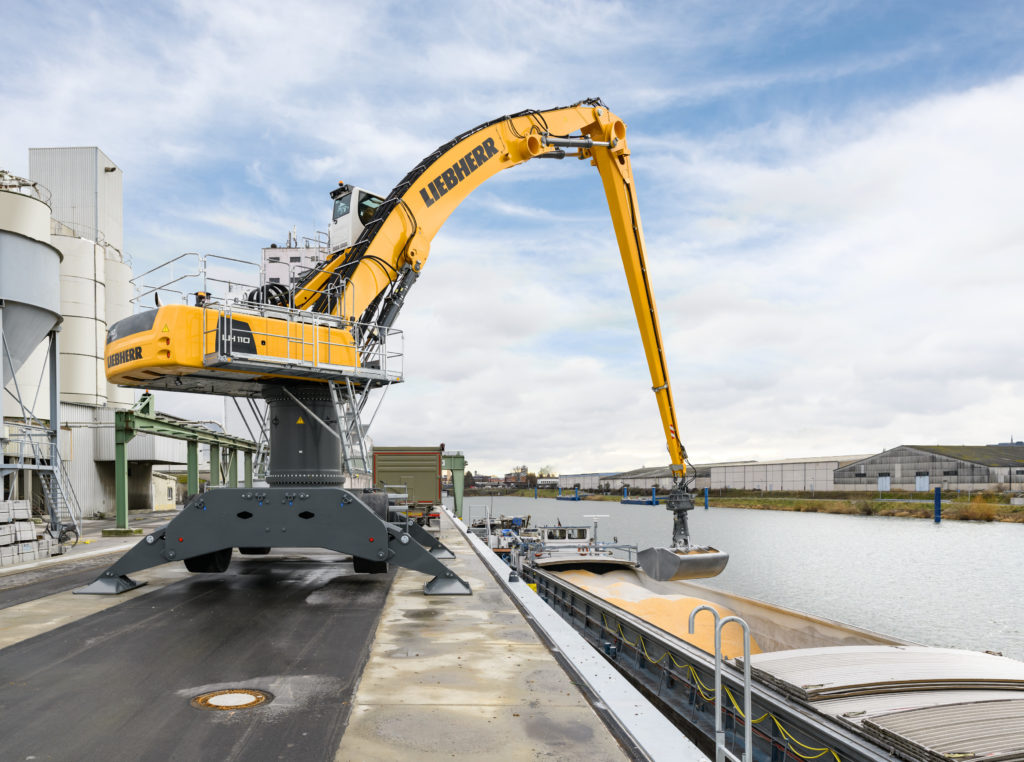

An LH 60 M hydraulic excavator is available to move light to medium-heavy groupage freight and bulk cargo over a distance of up to one ship’s width. The mobile handling machine can be deployed in all parts of the port.
LH 60 M Hydraulic Excavator
- Diesel powered – Tier V
- Undercarriage with single tyres (Super Solid tyres) and outrigger support (support base: 6 m x 7 m)
- 11.5 m jib with energy recovery cylinder, 8.8 m stick, angled
- Reach: 4 m to 18 m
- Load-bearing capacity (supported, at 0 m lifting height): max. 15 t; 11 t at 6 m jib length, 5 t at 18 m jib length
- Accessories: 3.75 m³ bulk cargo grapples; 1.7 m² timber grapples
The roll-on/roll-off facilities are located at the entrance to the West Port. The ro-ro ramp is used for loading items such as cars, trucks, or heavy-lift groupage, and is connected to the rail network with no load gauge restrictions.
Technical information:
- Width: 23 metres
- Slope: 12%
- Maximum load: 50 kN/m²
Access:
The federal motorway/roads can be accessed via the Odessa Ring (no restrictions on clearance heights) or via Osthafenstraße, Äußere Wiener Straße and Wiener Straße..
Please note the following restrictions:
- Height clearance:
Road bridge via Äußere Wiener Straße: 4.83 m
Railway bridge over Wiener Straße: 4.51 m. - Bridge class 60 for the bridges in Osthafenstraße
Heavy-lift handling
Bulky cargo and ultra-heavy-lift groupage freight are, depending on the tonnage, transferred via the port’s dedicated cranes or via truck-mounted cranes:
Handling using port equipment
Up to 80 tonnes can be handled at the West Port north quay .
Handling using truck-mounted cranes
For groupage freight in excess of 80 t, truck-mounted cranes at the East Port south quay can be deployed to handle up to 1,000 t.
Truck access is via the A3 federal motorway and/or the B8 federal road via Passauer Straße. There are no road restrictions for heavy goods vehicles. The East Port rail network can be accessed via Regensburg Central Station with no restrictions on loading gauges.
The West Port north quay has a rail link with two quayside rail tracks at its disposal. It can be accessed by road from the A3 federal motorway, the B8, B15, B16 or the Osttangente bypass via Linzer Strasse or Wiener Strasse / Auweg and Budapester Strasse.
Storage capacity
- Oil tank storage: 60,000 m³
- Silos: 251,000 m³
- Indoor storage: 163,000 m²
- Outdoor storage: 318,000 m²
- Refrigerated storage: 52,000 m³
A wide range of goods are moved at bayernhafen Passau. In addition to traditional cargo such as cereals, fertilisers and animal feed, the port also handles minerals, earths and cement. We provide you with expert advice and practical assistance for all manner of heavy-lift transport projects, from operational organisation to successful execution. For high-and-heavy loads, truck-mounted cranes can also be deployed.
Through the use of our state-of-the-art port handling technology, we ensure that your cargo is handled seamlessly. Our LHM 420 mobile harbour crane can be used to handle single loads weighing up to 120 tonnes.
The location can also be used for lightering operations. As a certified cargo and freight handling company, bayernhafen provides lightering services directly to shipping operators in Passau.
Would you like to find out more about our services or register your shipment for handling?
We would be more than happy to provide you with an individual offer.
We look forward to hearing from you!
Handling facilities
High-performance cargo-handling machines ensure seamless cargo transfer. Bulky cargo and ultra-heavy-lift groupage freight are transferred via the port’s dedicated cranes or through the use of truck-mounted cranes. The roll-on/roll-off facility enables all types of road freight to be loaded and unloaded directly from ship to shore or vice versa without the use of cargo handling equipment. In addition, a railcar loading ramp is available for transferring freight onto rail.
For ultra-heavy-lift loads – groupage and bulk cargo – over large distances, with a reach of up to 48 m.
LHM420 Mobile Harbour Crane
Technical information:
-
- Diesel powered - emissions level Tier 5
- Undercarriage with 64 wheels (360° mobility); support base 12.5 m x 12.5 m (can be optionally reduced to 14.1 m x 10.8 m)
- Jib length: 10.5 m to 48 m
- Lifting capacity: max. 120.5 t on the hook
- Accessories: hydraulic swivel hook; heavy-lift cross-beam; container spreader; 6 m³ and 20 m³ motorised clamshell buckets
Material-handling excavator
Technical information:
- Type: Sennebogen S855 E material-handling excavator, tyre chassis, total weight 72 tonnes, year of construction: 2019
- Jib length: max. 20.5 m
- Lifting capacity: at a jib length of 19.5m, approx. 7 tonnes on average
- Accessories: hook cross-beam, clamshell buckets 3.4 m³ and 5 m³, timber grapples 1.9 m³, orange peel grapples 1.4 m³
The ro-ro facilities in bayernhafen Passau-Schalding (Danube km 2,233.450) are used to load road-going units, such as cars, trucks, trailers, and so on, directly on to barge. They have a rail connection with unrestricted loading gauges, and are connected directly to the inter-regional road network via the federal road B 8. There are no known restrictions due to clearance heights of bridges.
Technical information:
- Width: 15 metres
- Slope: 8°
- Maximum load: 25 kN/m²
Passau-Schalding also provides a railcar loading ramp for so-called road-rail transport. This ramp enables road-going vehicles to be driven directly onto railway wagons without the need for cranes.
Scheduled ro-ro service:
Donau Star BG EOOD’s fortnightly scheduled StarLines service has linked bayernhafen Passau to the Bulgarian port of Ruse and other ro-ro-ready ports on the Danube since July 2015. The two catamarans, “Jumbo II” and “Jumbo III”, are capable of transporting up to 1,500 t. They need around seven days to travel down the Danube to Ruse and nine days for the return trip to Passau.
Heavy-lift handling
Bulky cargo and ultra-heavy-lift groupage freight are, depending on the tonnage, transferred via the port’s dedicated cranes or via truck-mounted cranes.
Cargo transfer using the port’s dedicated cranes
The LHM420 mobile harbour crane can handle up to 120.5 tonnes.
Cargo transfer using truck-mounted cranes
In addition, truck-mounted cranes can be deployed to handle up to 1,000 t.
Technical information:
- Available shore length: 450 running metres
- Max. load: outrigger load 4,800 kN distributed over 10 m²
Storage capacity
bayernhafen Passau provides sufficient, suitably equipped storage capacity for storing bulk goods, groupage freight and heavy-lift cargo as well as the various combined transport unit loads.
Storage capacity:
- External storage: 80,000 m²
- Internal storage: 5,000 m²
